The automatic aluminum corner code machine is a CNC integrated processing equipment designed for the mass production of aluminum corner codes. It can complete the entire automated process of aluminum profile feeding, positioning, drilling, tapping, cutting and blanking in one go without the need for multiple manual clamping operations. Compared with traditional manual or single-process equipment, it boasts significant advantages in efficiency, precision and cost control, making it a core mass production device for industries such as door, window and curtain wall manufacturing, and industrial aluminum profile processing.
1.Integrated full-process processing, doubled efficiency
All processes of drilling, tapping and cutting are completed with a single clamping, eliminating the time for handling and positioning between processes. The single-machine cycle time is 8-15 seconds per piece, with a daily output of 3,000-30,000 pieces, improving efficiency by 3-5 times compared with traditional single-process processing.
Equipped with no leftover material cutting technology and an intelligent nesting system, the aluminum profile utilization rate is increased to over 98%, reducing material waste and the unit processing cost.
2. High precision & high stability, uniform processing quality
Adopting a configuration of servo drive, linear guide rail and ball screw, the repeated positioning accuracy is ±0.02mm, the cutting angle error is ≤±0.1°. The drilling aperture and tapping thread precision are consistent, free from burrs, offset holes and thread slipping issues.
The high-rigidity cast iron bed features a low thermal expansion design, with minimal thermal deformation during 24/7 continuous operation. It ensures high consistency of mass-produced products, meeting the precision docking requirements for assembly.

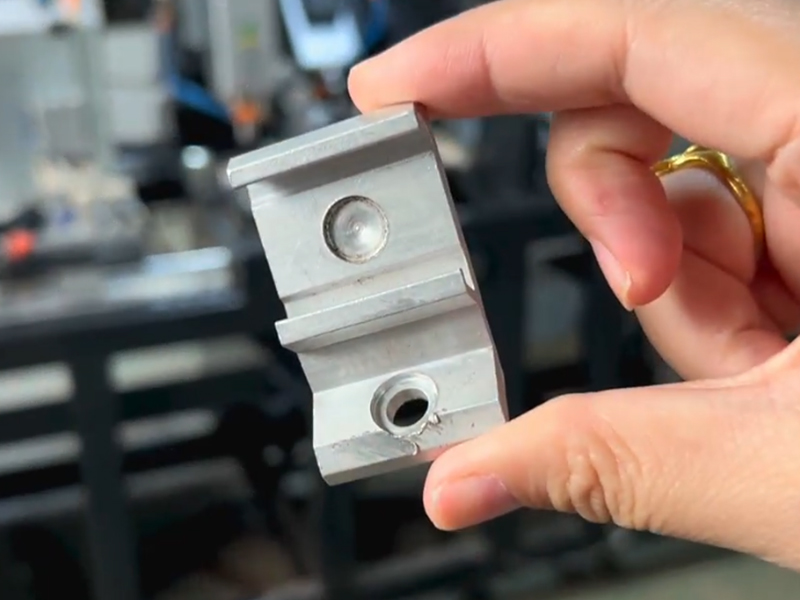

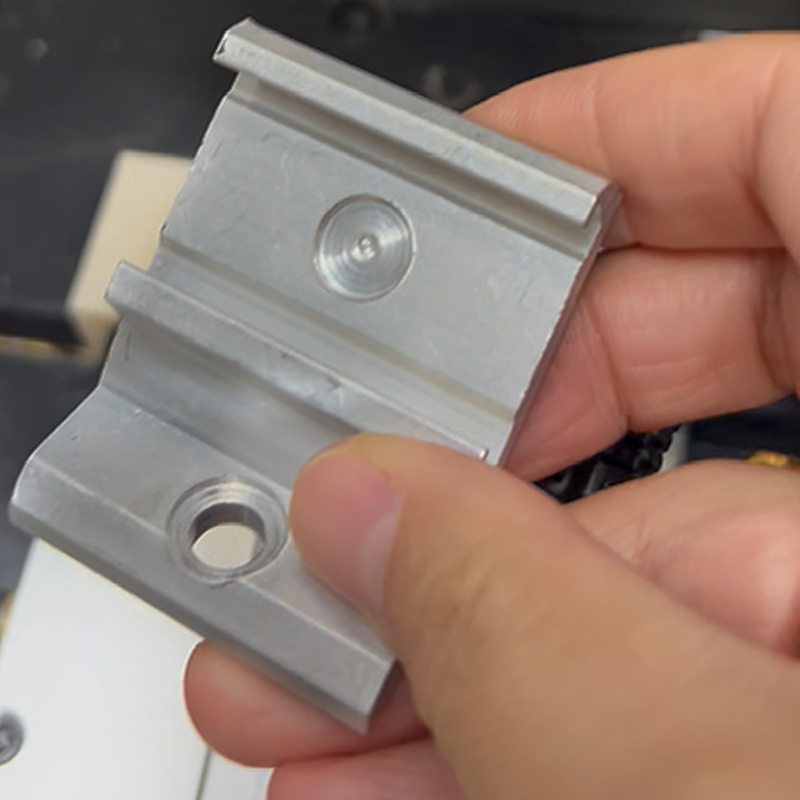

Aluminum Corners Automatic Machine Sample Display
3.Intelligent operation, adaptable to flexible production of multiple specifications
7-10 inch touch screen with graphical programming, supporting the storage of more than 30 sets of parameters. One-click switching is available for aluminum corner codes of different specifications (aperture, hole position, length, angle), reducing the model changeover time to the minute level.
Built-in functions including automatic counting, fault alarm, tool wear compensation and automatic lubrication. No professional CNC technicians are needed; ordinary workers can operate the machine after simple training, lowering the labor threshold.
4. Safe, durable and low maintenance cost
Fully enclosed protection design combined with pneumatic/hydraulic clamping devices prevents profile offset and chip splashing during processing, ensuring safer operation.
Modular structural design makes key components such as drilling heads, tapping heads and saw blades universal and easy to replace. Routine maintenance only requires regular inspection of guide rails and ball screws, with low consumable costs. The service life of the equipment can reach 8-10 years.
Typical Application Fields
Aluminum Door & Window Manufacturing Industry
It is ideal for mass production of aluminum corner connectors used in casement windows, sliding windows and folding doors, matching the strict size and precision requirements of door and window hardware accessories.
Curtain Wall Engineering Sector
Processes non-through hole aluminum corners for building curtain walls, ensuring the connection firmness of curtain wall aluminum profiles and meeting the safety standards of high-rise building exterior envelope structures.
Customized Aluminum Hardware Processing Plants
Adapts to small-batch and multi-specification aluminum corner processing needs, supporting customized production of special-shaped corners and non-standard hole positions.

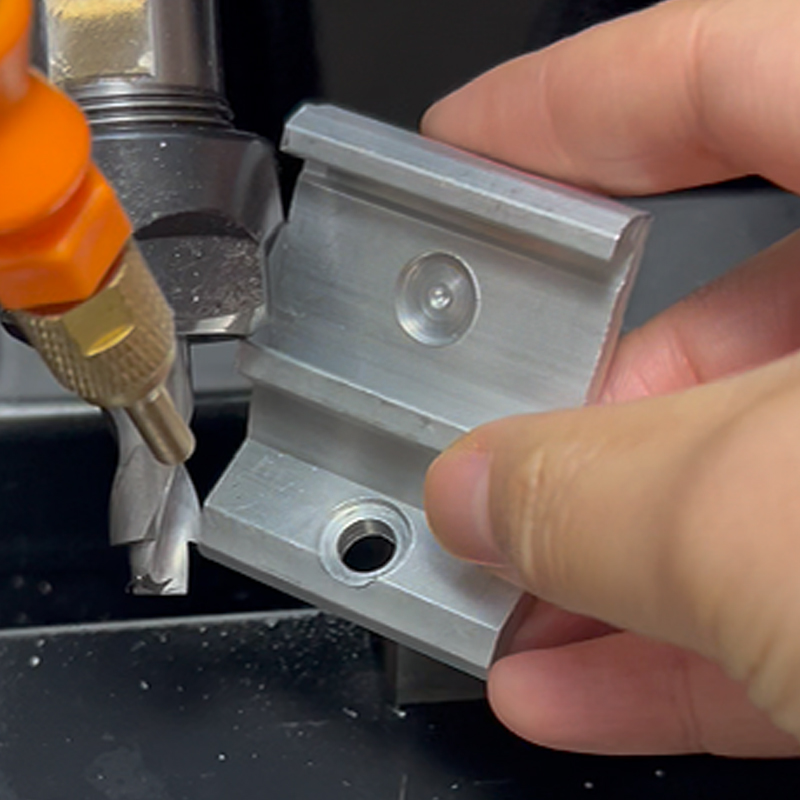

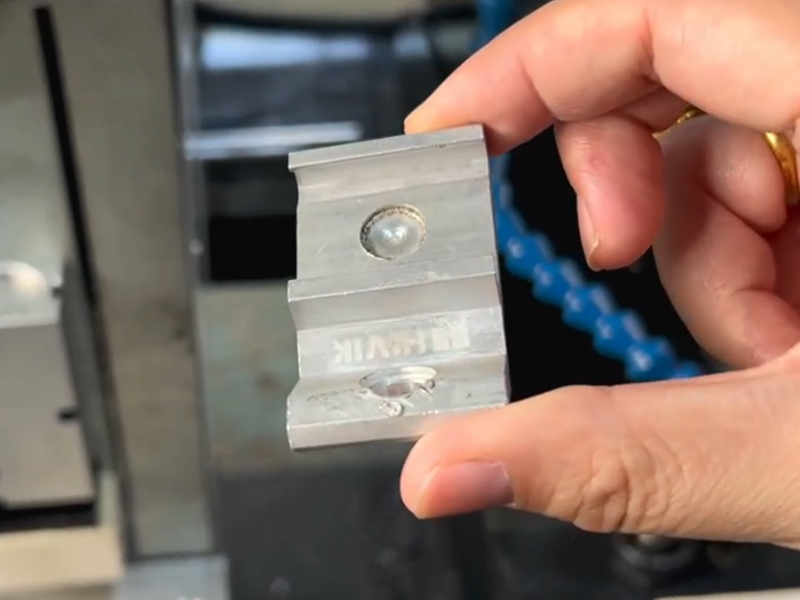

Aluminum Corners Automatic Machine Sample Display
